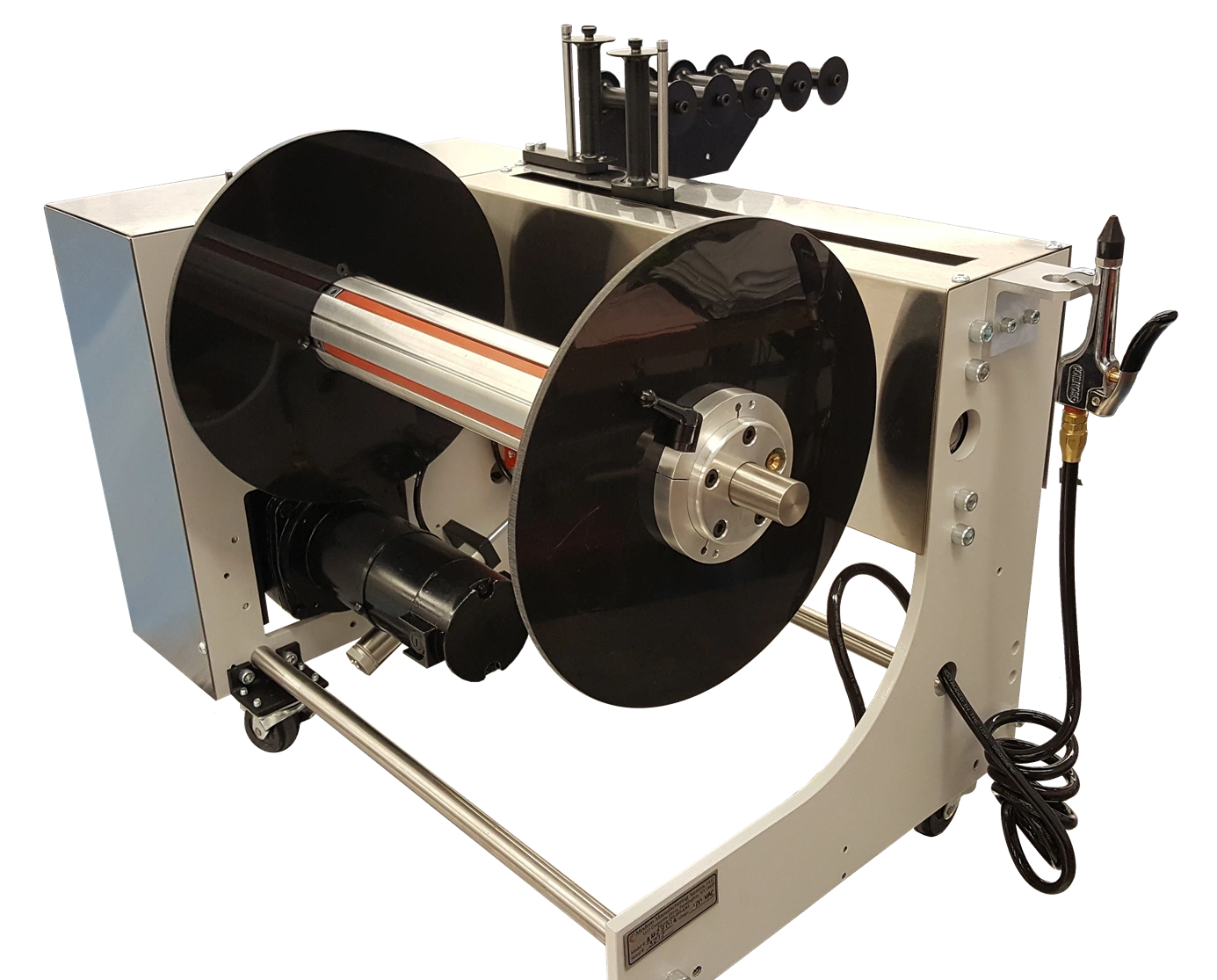

Trim re-winders

Trim re-winders

Our Trim Rewinders are a simple and sturdy, design that work with almost any converting line.

Each Trim Rewinder includes a 'built-in' dancer for intermittent motion systems. Tension adjustments for rewinder can be easily and quickly performed.

Our design also includes traverse wind that allows high linear footage on the rewinder. We even make unloading easy with a standard collapsible coreless shaft.

General Specifications

Machine Speed200 feet per minute / custom speeds available upon request
trim-re-winder-image
Machine Dimensions28" (711 MM) / 28 '' (711 MM) / 28 '' (711 MM)
Max Trim Width3" (76 MM) / wider widths available upon request
Wind Dimensions16" (406 MM) diameter / wind width 15 inch (381 MM)
Power Requirements110 or 220 VAC / 8 AMP (110 VAC ) 4 amp (220 VAC )
