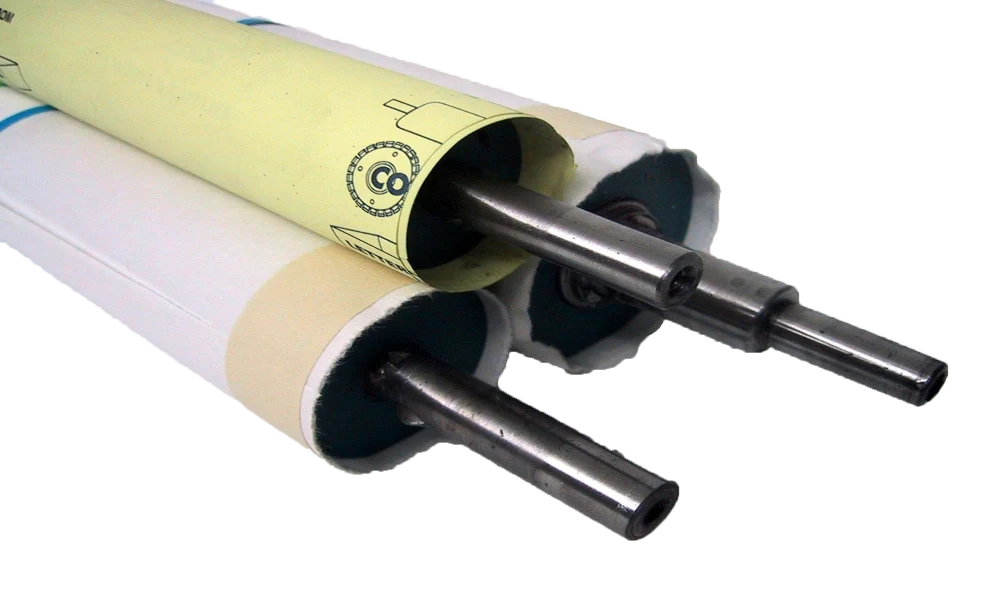

Draw rollers and sealing rolls
As a significant wear part in any bag production line we know the importance of having long life in these parts. Our rolls offer high quality, with the longest possible lifespan.
We provide upper & lower draw rolls (Split or Solid) and seal rolls for many models of: Scheldahl, Ro-An (Polystar), FMC, Gamma or Gloucester bag machines.
We offer a very short lead time to reduce or even eliminate down time of your machine. It goes without saying that downtime causes delayed or even lost revenue.
We have a large selection of sizes in house, ready to ship for quick turnaround.
We offer Draw and Sealing Rolls in 30", 41" and 56" sizes. With our in-house engineering capabilities, we can also custom make rolls to match any unique equipment requirements.
If you are not sure which roll you need, we can help you research the correct parts. Just send an email to: Sales@BagMachineParts.com and we'd be glad to assist you.
Note: a photo of the part is always helpful with our researching process.
Sealing Rolls
| Part # | Length | Bearing Part # | General Description |
|---|---|---|---|
| PS-974 | 30" | S-20478 | Seal Roller 8000-9000 series - Uses PS-4052 Gear |
| S-24248 | 30" | S-16187 | Seal Roll - 308 (RA-3036) |
| S-24216 | 30" | S-4368 | Seal Roll - 360 |
| PS-0898 | 41" | Seal Roll - Split Polystar 9500 | |
| S-25872 | 41" | S-4368 | Seal Roll - 108, 208, 308 (RA-3037) |
| PS-2105 | 41" | Split Lower Draw Roll | |
| PS-2295 | 56" | S-20478 | Split Seal Roll - 9500 |
| S-25871 | 56" | S-4368 | Seal Roll - 108, 208, 308 (RA-3038) |

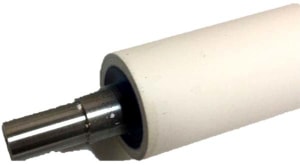

30" Seal Roll

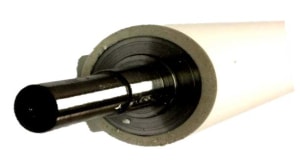

41" Seal Roll
30" Draw Rollers
| Part # | Bearing Part # | General Description |
|---|---|---|
| PS-0955 | Lower Draw Roll (5500) Ro-An | |
| PS-11022 | 30" Upper Draw Roll | |
| PS-11837 | 30" Lower Draw Roll | |
| PS-2071 | Lower Draw Roll for Ro-An 5000-8000 | |
| PS-2515 | PS-2508 | 30" Upper Draw Roll w/out Center Bearing 9000 Series |
| PS-2516 | PS-2503 | 30" Lower Draw Roll w/out Center Bearing9000 Series |
| PS-2517 | PS-2508 | 30" Upper Draw Roll w/ Center Bearing 9000 Series |
| PS-2518 | PS-2503 | 30" Lower Draw Roll w/ Center Bearing 9000 Series |
| PS-2551 | Upper Solid Draw Roll 9500 Ro-An | |
| PS-977 | Upper Draw Roll (5000, 5500, 8000) Ro-An | |
| S-27803 | S-20083 | Lower Solid Draw Roll 2" (RA-3030) - 308 |
| S-27804 | S-1928 | Upper Solid Draw Roll 2"(RA-3010) - 308 |
| S-43429 | S-40714 | Upper Draw Roll 2" - 360 |
| S-43432 | S-20083 | Lower Draw Roll 2" - 360 |

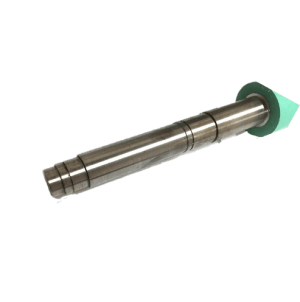

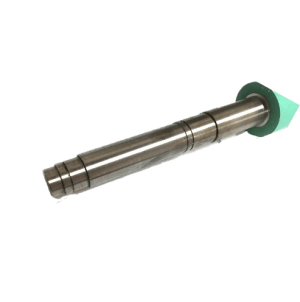

Lower Draw Roll
30" Upper Draw Roll
41" Draw Rollers
| Part # | Bearing Part # | General Description |
|---|---|---|
| PS-0892 | Upper Draw Roll - Split Polystar 9500 | |
| PS-0895 | Lower Draw Roll - Split Polystar 6000, 9500 | |
| PS-2619 | Split Lower Draw Roll 9400 series W/Aux Draw Roll PS-3010 | |
| PS-2630 | Split Upper Draw Roll 9400 series W/Aux Draw Roll PS-2630 | |
| PS-2841 | Solid Upper Draw Roll 9420-9414 series | |
| PS-2842 | Solid Lower Draw Roll 9420-9414 series | |
| PS-2846 | PS-2508 | Solid Upper Draw Roll 9450 series |
| PS-2847 | PS-2503 | Solid Lower Draw Roll 9450 series |
| S-12167 | S-1928 | Split Upper Draw Roll 1" - 108/208/308 |
| S-12171 | S-2049 | Split Lower Draw Roll 1" - 108/208 |
| S-12175 | S-1928 | Solid Upper Draw Roll 1" - 108/208/308 |
| S-12176 | S-2049 | Solid Lower Draw Roll 1" - 108/208 |
| S-12932 | S-2049 | Split Lower Draw Roll 2" (RA-3048) - 108/208 |
| S-12933 | S-1928 | Split Upper Draw Roll 2" (RA-3042) - 108/208 |
| S-12937 | S-2049 | Solid Lower Draw Roll 2" (RA-3016) - 108/208 |
| S-19727 | S-1928 | Solid Upper Draw Roll 2" (RA-3002) - 108/208/308 |
| S-20033 | S-20083 | Split Lower Draw Roll 1" - 308 |
| S-20506 | S-20083 | Solid Lower Draw Roll 1" - 308 |
| S-20507 | S-4389 | Solid Lower Draw Roll 2" (RA-3014) - 308 |
| S-20518 | S-20083 | Split Lower Draw Roll 2" (RA-3046) - 308 |

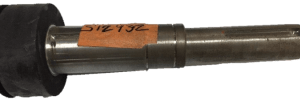

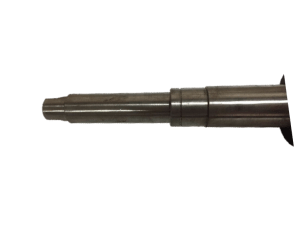

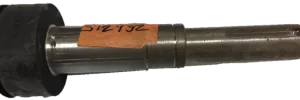

41" Split Lower Draw Roll
56" Draw Rollers
| Part # | Bearing Part # | General Description |
|---|---|---|
| PS-2143 | Split Upper Draw Roll | |
| PS-2146 | Split Lower Draw Roll | |
| PS-2349 | Lower Solid Draw Roll - 3500 | |
| PS-2350 | Upper Solid Draw Roll - 3500 | |
| PS-2553 | S-24078 | Split Lower Draw Roll - 9500 |
| PS-2559 | PS-2508 | Split Upper Draw Roll - 9500 |
| PS-2835 | PS-2508 | Solid Upper Draw Roll - 9500 |
| PS-2840 | S-24078 | Solid Lower Draw Roll - 9550 |
| PS-2952 | S-24078 | Split Lower Draw Roll w/ extended Shaft - 9500 |
| PS-4481 | S-24078 | Solid Lower Draw Roll w/ Drive 9550,9514,9520 |
| PS-4801 | Solid Lower Draw Roll 1/4" Grooves 9550,9514,9520,9614 | |
| PS-4802 | Split Upper Draw Roll 1/4" Grooves 9614 | |
| S-12168 | S-2049 | Solid Lower Draw Roll 1" - 108/208 |
| S-12172 | S-2049 | Split Lower Draw Roll 1" - 108/208 |
| S-12173 | S-1928 | Split Upper Draw Roll 1" - 108/208/308 |
| S-12189 | S-1928 | Solid Upper Draw Roll 1" - 108/208/308 |
| S-12930 | S-1928 | Split Upper Draw Roll 2" - 108/208/308(RA-3044) |
| S-12931 | S-2049 | Split Lower Draw Roll 2" - 108/208(RA-3050) |
| S-19688 | S-2049 | Solid Lower Draw Roll 2" - 108/208 (RA-3024) |
| S-19689 | S-1928 | Solid Upper Draw Roll 2" - 108/208/308 (RA-3008) |
| S-20413 | S-20083 | Split Lower Draw Roll 1" - 308 |
| S-20529 | S-20083 | Solid Lower Draw Roll 1" - 308 |
| S-20530 | S-4389 | Solid Lower Draw Roll 2" - 308 (RA-3028) |
| S-20536 | S-20083 | Split Lower Draw Roll 2" - 308 (RA-3052) |
56" Split Lower Draw Roll for Model 308
56" Split Lower Draw Roll - 9500
Build to Order Idler Roll Assembly
| Roll Diameter | Wall Thickness | Shaft Diameter | Tapped Threads | Bearing Part # |
|---|---|---|---|---|
| 2 inch | 1/8 inch | 5/8 | 5/16-18 | 400137 |
| 2 inch | 1/8 inch | 3/4 | 3/8-16 | 400010 |
