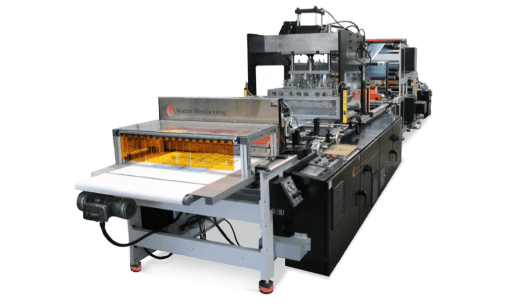

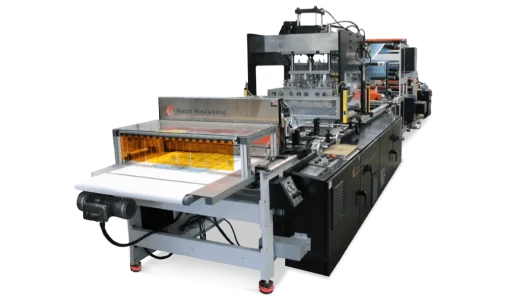

Medical shape seal
State-of-the-Art intuitive controls and the ability to add or subtract features as needed make the Modern pouch machine unique to the flexible packaging industry.
![Medical shape seal](https://assets.stickermule.com/image/fetch/c_lfill,fl_lossy,f_auto,q_auto:best,w_0.5/d_re-store-modern:placeholder.png/https://storage.googleapis.com/sm-modern/products/machines/medical-shape-seal/hero)
![](https://img.youtube.com/vi/ovByb8pmtVk/sddefault.jpg)
Quick and Easy Set-Up
Our pouch machinery offers the flexibility to add or subtract features as needed. With reduced set-ups and low scrap rates this machine becomes a work horse for your pouch making needs. The high speed servo model offers a productivity solution to medical pouch applications that require high speed output as well as verifiable product quality.
![](https://assets.stickermule.com/image/fetch/c_lfill,fl_lossy,f_auto,q_auto:best,w_480/d_re-store-modern:placeholder.png/https://storage.googleapis.com/sm-modern/products/machines/medical-shape-seal/configuration-optional)

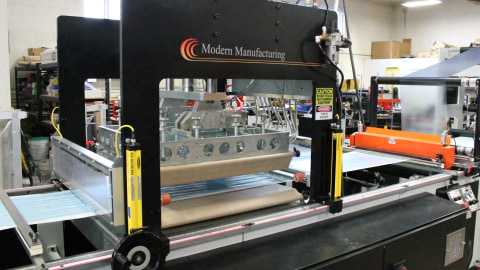

Standard Configuration
Heat-seal medical peel pouches single or multi lane, with or without thumb notches.
![](https://assets.stickermule.com/image/fetch/c_lfill,fl_lossy,f_auto,q_auto:best,w_480/d_re-store-modern:placeholder.png/https://storage.googleapis.com/sm-modern/products/machines/medical-shape-seal/configuration-standard)

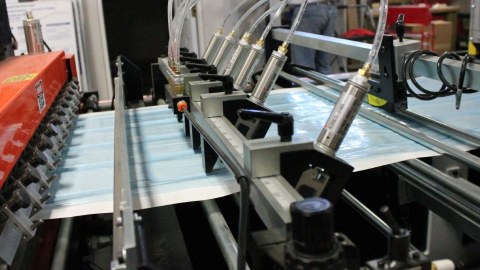

Optional Configuration
Self-seal medical peel pouches single or two lane, with or without thumb notches. Many other options available.
Pouch configurations
- Heat seal medical
- Header seal
- Three side seal
Optional pouch configurations
- Self seal medical
- Shaped pouches
- Header pouches
Download configurations PDF
Medical shape seal specifications
- Shaped seal pouch making machine
- 24 inch or 30 inch (610 mm) (762 mm)
- Max pouch height
- 24 inch or 30 inch (610 mm) (762 mm)
- Max lay-flat web width
- 24 inch or 30 inch (610 mm) (762 mm)
- Mechanical speeds
- 200 CPM
- Max roll diameter
- 30 inch (762 mm)
- Electrical requirements
- 208 / 220 VAC, 150 AMP
- Standard core size
- 3 inch (76 mm)
- Servo actuated machine air requirements
- 15 CFM @ 90 PSI
- Min/max pouch width
- 3/18 inch (76/457 mm)
- Water
- TBD
