Medical header bags

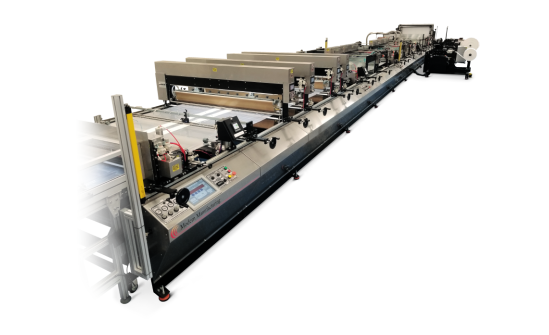

Our unique sealing technology, and tension control, makes this machine an excellent production machine for medical header bags.

Medical header bags

Effective and efficient processing of medical header bags

A multi-feed system is installed to gain production efficiencies. The machine can be equipped to run single or two lane configurations. The machine can be equipped with a five web system to allow multi-layer header bags to be produced.

Pouch configurations

  • Three side seal
    Three side seal
  • Header seal
    Header seal
  • Header bags
    Header bags
  • Reinforced header bags
    Reinforced header bags
Download configurations PDF

Medical header bags specifications

Shaped seal pouch making machine
36 inch or 48 inch (914 mm) (1219 mm)
Max pouch height
36 inch or 48 inch (914 mm) (1219 mm)
Max lay-flat web width
36 inch or 48 inch (914 mm) (1219 mm)
Mechanical speeds
120 CPM
Max roll diameter
30 inch (762 mm)
Electrical requirements
208 / 220 VAC, 200 AMP
Standard core size
3 inch (76 mm)
Servo actuated machine air requirements
15 CFM @ 90 PSI
Min/max pouch width
3/18 inch (76/457 mm)
